Energy Management Software

Mediant Energy's energy management software allows real-time monitoring and control of your energy usage. It optimizes power consumption, enhancing efficiency and reducing electricity costs. The software integrates seamlessly with solar and battery storage systems.

Energy Management Softwares

  • Storage Systems 1
  • Storage Systems 2
mediant

What is Lorem Ipsum?

Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book. It has survived not only five centuries, but also the leap into electronic typesetting, remaining essentially unchanged. It was popularised in the 1960s with the release of Letraset sheets containing Lorem Ipsum passages, and more recently with desktop publishing software like Aldus PageMaker including versions of Lorem Ipsum.

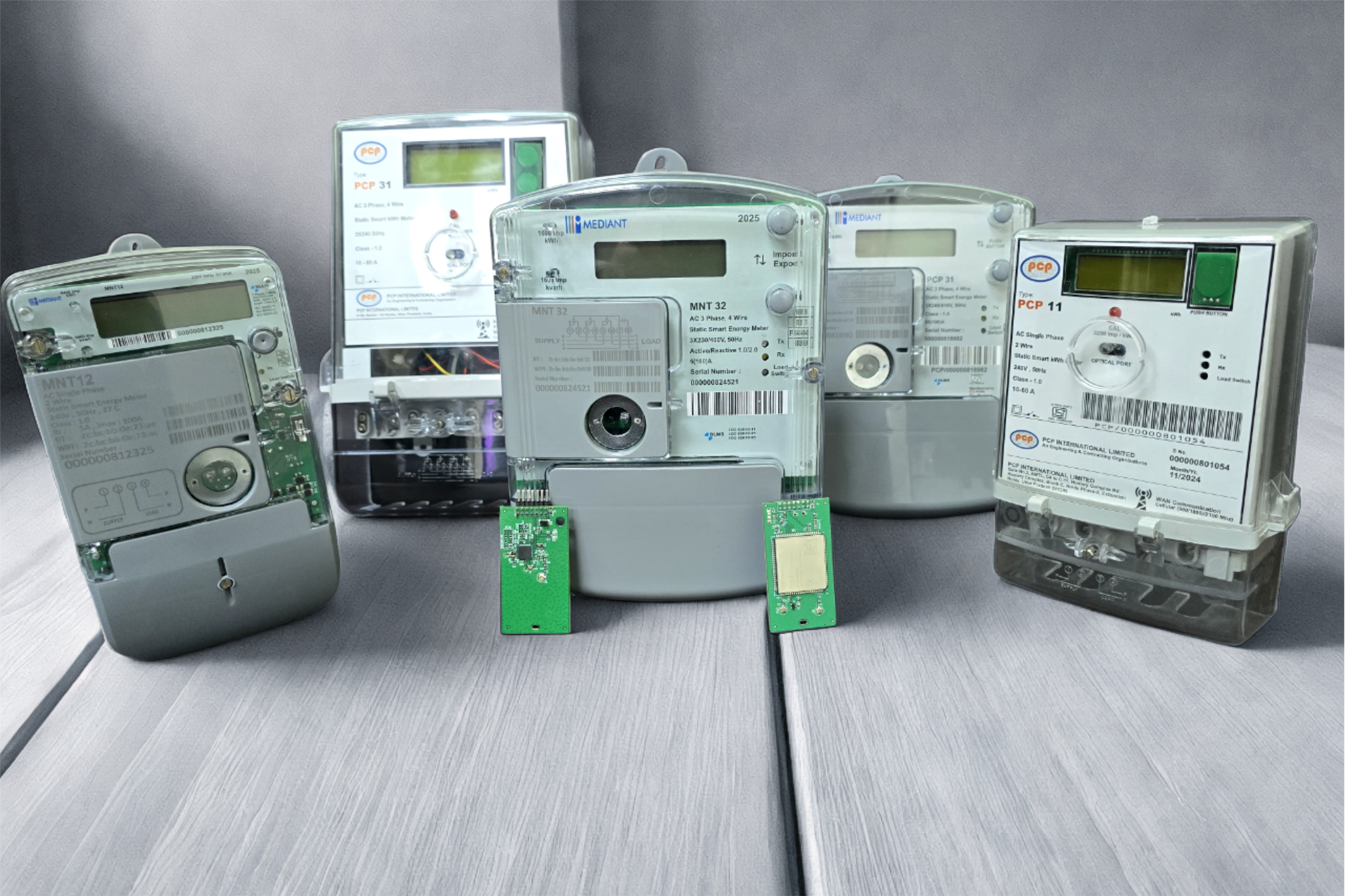

Specifications of Single-Phase Smart Meter

Basic Electrical & Performance Parameters:
  • Type: 1 Phase, 2 Wire, 240VAC, 50Hz
  • Accuracy Class: Class 1 as per IS 13779/IS 16444
  • Current Range: Ib 5A, Imax 80A
  • Operating Voltage: 240V (+20%, -40%)
  • Operating Frequency: 50Hz ± 5%
  • Starting Current: 0.2% Ib at 240V, Unity Power Factor
  • Power Consumption:
    • Voltage Circuit: 7W (under communication), 5W, 15VA
    • Current Circuit: 4VA
  • Short Time Overcurrent: 30Imax for half cycle
  • Power Factor Range: Zero Lag to Unity
Mechanical & Environmental Features:
  • Degree of Protection: IP51
  • Resistance to Heat & Fire: As per IS 13779:99
  • Electromagnetic Compatibility (EMC): Yes
  • Tamper Detection:
    • Immune to DC tampering (Phase & Neutral)
    • Detects magnetic tampering & abnormal energy usage events
    • Logs tamper events with date & time stamps
    • Under tamper conditions, the meter disconnects after a warning
Communication & Smart Features:
  • Communication Protocols: RF 865 – 867 MHz, GPRS 4G (fallback to 2G), Bluetooth, Wi-Fi, RS-485, Optical Port
  • Remote Firmware Updates (FOTA): DLMS compliant
  • Power Failure Alerts: Sends notifications during power failures
  • Self-Diagnostic Feature: Displays all segments on LCD at startup
  • Net Metering Support: Yes
Physical & Display Features:
  • Display Type: Backlit LCD (Green, Pin Type, STN, 120° Viewing Angle)
  • Pulse Rate: 3200 imp/kWh
  • Memory Retention: EEPROM, more than 20 years
  • Measuring Elements: Shunt in Phase, CT in Neutral
Safety & Security Features:
  • Withstand Voltage:
    • Impulse Voltage: 6kV, 100E impedance
    • AC Withstand Voltage: 4kV (Body to Terminals)
  • Insulation Resistance:
    • Frame to Current/Voltage Circuits: > 5MΩ
    • Between Circuits: > 50MΩ
  • Sealing: Polycarbonate seals with serial number & logo
  • Fire Retardant Material:
    • Meter Body: PC (Polycarbonate), 2mm Thickness
    • Terminal Block: Integral part of the base body
  • Terminal Screws: M6, Nickel Plated Brass
  • Ultrasonic Welding for Base & Cover: Glued & Locked
Additional Features:
  • Startup Time: Fully functional within 5 seconds of power application
  • Optical Port: RS232 (D9) Connector for termination in the meter box
  • Disconnector Switch:
    • Make: HONGFA/KG/EVE
    • Two single-pole relays (90A) used in Phase & Neutral Circuit
  • Tamper Counters: Yes
  • Routine & Acceptance Test Certificates: Applied for

This Single-Phase Smart Meter is designed for electricity boards, AMR/AMI applications, and smart energy management systems, ensuring high efficiency, security, and reliable remote communication.

mediant

Brief Description of PCP Smart Meter

The PCP Single-Phase Smart Meter is a state-of-the-art electricity metering device designed for accurate energy measurement, real-time monitoring, and remote communication. It operates on a 1-phase, 2-wire, 240V AC, 50Hz system, ensuring high precision and reliability as per IS 13779/IS 16444 standards. The smart meter is equipped with tamper detection, net metering support, and multiple communication options (RF, GPRS 4G, Bluetooth, Wi-Fi, Optical Port), making it ideal for residential, commercial, and industrial applications. With its robust security features and energy-efficient design, the PCP Smart Meter enhances electricity management, reduces losses, and improves billing accuracy.

Specifications of PCP Single-Phase Smart Meter

Electrical & Performance Parameters:
  • Type: 1 Phase, 2 Wire, 240V AC, 50Hz
  • Accuracy Class: Class 1 as per IS 13779/IS 16444
  • Current Range: Ib 5A, Imax 80A
  • Operating Voltage: 240V (+20%, -40%)
  • Starting Current: 0.2% Ib at 240V, Unity Power Factor
  • Power Consumption:
    • Voltage Circuit: 7W (under communication), 5W, 15VA
    • Current Circuit: 4VA
  • Short Time Overcurrent: 30Imax for half cycle
  • Power Factor Range: Zero Lag to Unity
Mechanical & Environmental Features:
  • Degree of Protection: IP51
  • Resistance to Heat & Fire: As per IS 13779:99
  • Electromagnetic Compatibility (EMC): Yes
  • Tamper Detection:
    • Immune to DC tampering (Phase & Neutral)
    • Detects magnetic tampering & abnormal energy usage events
    • Logs tamper events with date & time stamps
    • Under tamper conditions, the meter disconnects after a warning
Communication & Smart Features:
  • Communication Protocols: RF 865 – 867 MHz, GPRS 4G (fallback to 2G), Bluetooth, Wi-Fi, RS-485, Optical Port
  • Remote Firmware Updates (FOTA): DLMS compliant
  • Power Failure Alerts: Sends notifications during power failures
  • Self-Diagnostic Feature: Displays all segments on LCD at startup
  • Net Metering Support: Yes
Physical & Display Features:
  • Display Type: Backlit LCD (Green, Pin Type, STN, 120° Viewing Angle)
  • Pulse Rate: 3200 imp/kWh
  • Memory Retention: EEPROM, more than 20 years
  • Measuring Elements: Shunt in Phase, CT in Neutral
Safety & Security Features:
  • Withstand Voltage:
    • Impulse Voltage: 6kV, 100E impedance
    • AC Withstand Voltage: 4kV (Body to Terminals)
  • Insulation Resistance:
    • Frame to Current/Voltage Circuits: > 5MΩ
    • Between Circuits: > 50MΩ
  • Sealing: Polycarbonate seals with serial number & logo
  • Fire Retardant Material:
    • Meter Body: PC (Polycarbonate), 2mm Thickness
    • Terminal Block: Integral part of the base body
  • Terminal Screws: M6, Nickel Plated Brass
  • Ultrasonic Welding for Base & Cover: Glued & Locked
Additional Features:
  • Startup Time: Fully functional within 5 seconds of power application
  • Optical Port: RS232 (D9) Connector for termination in the meter box
  • Disconnector Switch:
    • Make: HONGFA/KG/EVE
    • Two single-pole relays (90A) used in Phase & Neutral Circuit
  • Tamper Counters: Yes
  • Routine & Acceptance Test Certificates: Applied for

The PCP Single-Phase Smart Meter is a modern and intelligent metering solution designed to enhance energy efficiency, security, and accurate billing. With real-time tracking, remote communication, and tamper-proof features, it is an essential component for smart grids, AMI applications, and efficient electricity management.

  • Storage Systems 1
  • Storage Systems 2
mediant

Brief Description of Mediant Three-Phase Smart Meter

The Mediant Three-Phase Smart Meter is an advanced energy metering solution designed for accurate, real-time electricity monitoring and management. It is a 3-phase, 4-wire, direct-reading meter that ensures high precision with Class 1 accuracy as per IS 13779/IS 16444 standards. The meter is equipped with tamper detection, net metering capabilities, and remote communication features such as RF, GPRS 4G, Bluetooth, Wi-Fi, RS-485, and Optical Port, making it suitable for electricity boards, AMR/AMI applications, and industrial energy monitoring. With its robust security features, energy efficiency, and remote firmware update capabilities (FOTA), it enhances power distribution management while reducing energy losses.

Specifications of Mediant Three-Phase Smart Meter

Electrical & Performance Parameters:
  • Type: 3 Phase, 4 Wire, Whole Current Meter, Direct Reading Type
  • Accuracy Class: Class 1 as per IS 13779/IS 16444
  • Current Range: Ib 5A, Imax 100A
  • Operating Voltage:240V (+20%, -40%)
  • Operating Frequency:50Hz ± 5%
  • Power Consumption:
    • Voltage Circuit: 7W (under communication), 5W, 15VA
    • Current Circuit: 4VA
  • Short Time Overcurrent: 50 Imax for half cycle
  • Power Factor Range: Zero Lag to Unity
Mechanical & Environmental Features:
  • Degree of Protection: IP51 as per IS 12063
  • Resistance to Heat & Fire: As per IS 13779:99
  • Electromagnetic Compatibility (EMC): Yes, as per IS 13779:99
  • Tamper Detection:
    • Immune to stray magnetic fields, abnormal magnetic interference, and DC tampering
    • Logs tamper events with date & time stamps
    • Disconnects power supply under tamper conditions after a warning
Communication & Smart Features:
  • Communication Protocols: RF 865 – 867 MHz, GPRS 4G (fallback to 2G), Bluetooth, Wi-Fi, RS-485, Optical Port
  • Remote Firmware Updates (FOTA): DLMS compliant
  • Power Failure Alerts: Sends notifications during power failures
  • Self-Diagnostic Feature: Displays all segments on LCD at startup
  • Net Metering Support: Yes
Physical & Display Features:
  • Display Type:Backlit LCD (Green, Pin Type, STN, 120° Viewing Angle)
  • Pulse Rate: 1600 imp/kWh
  • Memory Retention:EEPROM, more than 20 years
  • Measuring Elements: Shunt in Phase, CT in Neutral
  • Startup Time:Fully functional within 5 seconds of power application
Safety & Security Features:
  • Withstand Voltage:
    • Impulse Voltage: 8kV, 100E impedancee
    • AC Withstand Voltage: 4kV (Body to Terminals)
  • Insulation Resistance:
    • Frame to Current/Voltage Circuits: > >5MΩ
    • Between Circuits: > >50MΩ
  • Sealing: Polycarbonate seals with serial number & logo
  • Fire Retardant Material:
    • Meter Body: PC (Polycarbonate), 2mm Thickness
    • Terminal Block: Integral part of the base body
  • Terminal Screws: M6, Nickel Plated Brass
  • Ultrasonic Welding for Base & Cover: Glued & Locked
Additional Features:
  • Optical Port:Additional RS232 (D9) Connector for termination in the meter box
  • Disconnector Switch:
    • Make: HONGFA/KG/EVE
    • Two single-pole relays (90A) used in Phase & Neutral Circuit
  • Tamper Counters: Yes
  • Type Test Certified:IS 16444 Certified
  • Power Supply Backup:Super Cap, then Battery

The Mediant Three-Phase Smart Meter is a highly advanced metering solution designed to optimize energy efficiency, ensure accurate billing, and enhance security. Its real-time tracking, remote communication, and tamper-proof features make it a key component for smart grids, industrial applications, and AMI-based energy management systems.

mediant

Brief Description of PCP Three-Phase Smart Meter

The PCP Three-Phase Smart Meter is a high-precision energy metering device designed for accurate monitoring, real-time data collection, and secure energy management. It is a 3-phase, 4-wire, direct-reading meter that ensures reliable performance with Class 1 accuracy as per IS 13779/IS 16444 standards. Equipped with tamper detection, net metering capabilities, and multiple communication protocols (RF, GPRS 4G, Bluetooth, Wi-Fi, RS-485, Optical Port), this smart meter is ideal for industrial, commercial, and smart grid applications.With its remote firmware update (FOTA) capabilities, advanced security features, and energy efficiency, the PCP Three-Phase Smart Meter enhances power distribution management while minimizing energy losses. It supports real-time monitoring, automated billing, and seamless integration with Advanced Metering Infrastructure (AMI), making it a smart solution for modern energy systems.

Specifications of PCP Three-Phase Smart Meter

Electrical & Performance Parameters:
  • Type: 3 Phase, 4 Wire, Whole Current Meter, Direct Reading Type
  • Accuracy Class: Class 1 as per IS 13779/IS 16444
  • Current Range: Ib 5A, Imax 100A
  • Operating Voltage:240V (+20%, -40%)
  • Operating Frequency:50Hz ± 5%
  • Power Consumption:
    • Voltage Circuit: 7W (under communication), 5W, 15VA
    • Current Circuit: 4VA
  • Short Time Overcurrent: 50 Imax for half cycle
  • Power Factor Range: Zero Lag to Unity
Mechanical & Environmental Features:
  • Degree of Protection: IP51 as per IS 12063
  • Resistance to Heat & Fire: As per IS 13779:99
  • Electromagnetic Compatibility (EMC): Yes, as per IS 13779:99
  • Tamper Detection:
    • Immune to stray magnetic fields, abnormal magnetic interference, and DC tampering
    • Logs tamper events with date & time stamps
    • Disconnects power supply under tamper conditions after a warning
Communication & Smart Features:
  • Communication Protocols: RF 865 – 867 MHz, GPRS 4G (fallback to 2G), Bluetooth, Wi-Fi, RS-485, Optical Port
  • Remote Firmware Updates (FOTA): DLMS compliant
  • Power Failure Alerts: Sends notifications during power failures
  • Self-Diagnostic Feature: Displays all segments on LCD at startup
  • Net Metering Support: Yes
Physical & Display Features:
  • Display Type:Backlit LCD (Green, Pin Type, STN, 120° Viewing Angle)
  • Pulse Rate: 1600 imp/kWh
  • Memory Retention:EEPROM, more than 20 years
  • Measuring Elements: Shunt in Phase, CT in Neutral
  • Startup Time:Fully functional within 5 seconds of power application
Safety & Security Features:
  • Withstand Voltage:
    • Impulse Voltage: 8kV, 100E impedancee
    • AC Withstand Voltage: 4kV (Body to Terminals)
  • Insulation Resistance:
    • Frame to Current/Voltage Circuits: > >5MΩ
    • Between Circuits: > >50MΩ
  • Sealing: Polycarbonate seals with serial number & logo
  • Fire Retardant Material:
    • Meter Body: PC (Polycarbonate), 2mm Thickness
    • Terminal Block: Integral part of the base body
  • Terminal Screws: M6, Nickel Plated Brass
  • Ultrasonic Welding for Base & Cover: Glued & Locked
Additional Features:
  • Optical Port:Additional RS232 (D9) Connector for termination in the meter box
  • Disconnector Switch:
    • Make: HONGFA/KG/EVE
    • Two single-pole relays (90A) used in Phase & Neutral Circuit
  • Tamper Counters: Yes
  • Type Test Certified:IS 16444 Certified
  • Power Supply Backup:Super Cap, then Battery

The Mediant Three-Phase Smart Meter is a highly advanced metering solution designed to optimize energy efficiency, ensure accurate billing, and enhance security. Its real-time tracking, remote communication, and tamper-proof features make it a key component for smart grids, industrial applications, and AMI-based energy management systems.

mediant

Brief Description of PCP Three-Phase Smart Meter

The PCP Three-Phase Smart Meter is a high-precision energy metering device designed for accurate monitoring, real-time data collection, and secure energy management. It is a 3-phase, 4-wire, direct-reading meter that ensures reliable performance with Class 1 accuracy as per IS 13779/IS 16444 standards. Equipped with tamper detection, net metering capabilities, and multiple communication protocols (RF, GPRS 4G, Bluetooth, Wi-Fi, RS-485, Optical Port), this smart meter is ideal for industrial, commercial, and smart grid applications.With its remote firmware update (FOTA) capabilities, advanced security features, and energy efficiency, the PCP Three-Phase Smart Meter enhances power distribution management while minimizing energy losses. It supports real-time monitoring, automated billing, and seamless integration with Advanced Metering Infrastructure (AMI), making it a smart solution for modern energy systems.

Specifications of PCP Three-Phase Smart Meter

Electrical & Performance Parameters:
  • Type: 3 Phase, 4 Wire, Whole Current Meter, Direct Reading Type
  • Accuracy Class: Class 1 as per IS 13779/IS 16444
  • Current Range: Ib 5A, Imax 100A
  • Operating Voltage:240V (+20%, -40%)
  • Operating Frequency:50Hz ± 5%
  • Power Consumption:
    • Voltage Circuit: 7W (under communication), 5W, 15VA
    • Current Circuit: 4VA
  • Short Time Overcurrent: 50 Imax for half cycle
  • Power Factor Range: Zero Lag to Unity
Mechanical & Environmental Features:
  • Degree of Protection: IP51 as per IS 12063
  • Resistance to Heat & Fire: As per IS 13779:99
  • Electromagnetic Compatibility (EMC): Yes, as per IS 13779:99
  • Tamper Detection:
    • Immune to stray magnetic fields, abnormal magnetic interference, and DC tampering
    • Logs tamper events with date & time stamps
    • Disconnects power supply under tamper conditions after a warning
Communication & Smart Features:
  • Communication Protocols: RF 865 – 867 MHz, GPRS 4G (fallback to 2G), Bluetooth, Wi-Fi, RS-485, Optical Port
  • Remote Firmware Updates (FOTA): DLMS compliant
  • Power Failure Alerts: Sends notifications during power failures
  • Self-Diagnostic Feature: Displays all segments on LCD at startup
  • Net Metering Support: Yes
Physical & Display Features:
  • Display Type:Backlit LCD (Green, Pin Type, STN, 120° Viewing Angle)
  • Pulse Rate: 1600 imp/kWh
  • Memory Retention:EEPROM, more than 20 years
  • Measuring Elements: Shunt in Phase, CT in Neutral
  • Startup Time:Fully functional within 5 seconds of power application
Safety & Security Features:
  • Withstand Voltage:
    • Impulse Voltage: 8kV, 100E impedancee
    • AC Withstand Voltage: 4kV (Body to Terminals)
  • Insulation Resistance:
    • Frame to Current/Voltage Circuits: > >5MΩ
    • Between Circuits: > >50MΩ
  • Sealing: Polycarbonate seals with serial number & logo
  • Fire Retardant Material:
    • Meter Body: PC (Polycarbonate), 2mm Thickness
    • Terminal Block: Integral part of the base body
  • Terminal Screws: M6, Nickel Plated Brass
  • Ultrasonic Welding for Base & Cover: Glued & Locked
Additional Features:
  • Optical Port:Additional RS232 (D9) Connector for termination in the meter box
  • Disconnector Switch:
    • Make: HONGFA/KG/EVE
    • Two single-pole relays (90A) used in Phase & Neutral Circuit
  • Tamper Counters: Yes
  • Type Test Certified:IS 16444 Certified
  • Power Supply Backup:Super Cap, then Battery

The Mediant Three-Phase Smart Meter is a highly advanced metering solution designed to optimize energy efficiency, ensure accurate billing, and enhance security. Its real-time tracking, remote communication, and tamper-proof features make it a key component for smart grids, industrial applications, and AMI-based energy management systems.

  • 4G / LTE Module with 2G fallback
  • Sub GHz RF Module
  • WiFi / BLE Module
4G / LTE Module with 2G fallback
mediant

Brief Description of PCP Three-Phase Smart Meter

The PCP Three-Phase Smart Meter is a high-precision energy metering device designed for accurate monitoring, real-time data collection, and secure energy management. It is a 3-phase, 4-wire, direct-reading meter that ensures reliable performance with Class 1 accuracy as per IS 13779/IS 16444 standards. Equipped with tamper detection, net metering capabilities, and multiple communication protocols (RF, GPRS 4G, Bluetooth, Wi-Fi, RS-485, Optical Port), this smart meter is ideal for industrial, commercial, and smart grid applications.With its remote firmware update (FOTA) capabilities, advanced security features, and energy efficiency, the PCP Three-Phase Smart Meter enhances power distribution management while minimizing energy losses. It supports real-time monitoring, automated billing, and seamless integration with Advanced Metering Infrastructure (AMI), making it a smart solution for modern energy systems.

Specifications of PCP Three-Phase Smart Meter

Electrical & Performance Parameters:
  • Type: 3 Phase, 4 Wire, Whole Current Meter, Direct Reading Type
  • Accuracy Class: Class 1 as per IS 13779/IS 16444
  • Current Range: Ib 5A, Imax 100A
  • Operating Voltage:240V (+20%, -40%)
  • Operating Frequency:50Hz ± 5%
  • Power Consumption:
    • Voltage Circuit: 7W (under communication), 5W, 15VA
    • Current Circuit: 4VA
  • Short Time Overcurrent: 50 Imax for half cycle
  • Power Factor Range: Zero Lag to Unity
Mechanical & Environmental Features:
  • Degree of Protection: IP51 as per IS 12063
  • Resistance to Heat & Fire: As per IS 13779:99
  • Electromagnetic Compatibility (EMC): Yes, as per IS 13779:99
  • Tamper Detection:
    • Immune to stray magnetic fields, abnormal magnetic interference, and DC tampering
    • Logs tamper events with date & time stamps
    • Disconnects power supply under tamper conditions after a warning
Communication & Smart Features:
  • Communication Protocols: RF 865 – 867 MHz, GPRS 4G (fallback to 2G), Bluetooth, Wi-Fi, RS-485, Optical Port
  • Remote Firmware Updates (FOTA): DLMS compliant
  • Power Failure Alerts: Sends notifications during power failures
  • Self-Diagnostic Feature: Displays all segments on LCD at startup
  • Net Metering Support: Yes
Physical & Display Features:
  • Display Type:Backlit LCD (Green, Pin Type, STN, 120° Viewing Angle)
  • Pulse Rate: 1600 imp/kWh
  • Memory Retention:EEPROM, more than 20 years
  • Measuring Elements: Shunt in Phase, CT in Neutral
  • Startup Time:Fully functional within 5 seconds of power application
Safety & Security Features:
  • Withstand Voltage:
    • Impulse Voltage: 8kV, 100E impedancee
    • AC Withstand Voltage: 4kV (Body to Terminals)
  • Insulation Resistance:
    • Frame to Current/Voltage Circuits: > >5MΩ
    • Between Circuits: > >50MΩ
  • Sealing: Polycarbonate seals with serial number & logo
  • Fire Retardant Material:
    • Meter Body: PC (Polycarbonate), 2mm Thickness
    • Terminal Block: Integral part of the base body
  • Terminal Screws: M6, Nickel Plated Brass
  • Ultrasonic Welding for Base & Cover: Glued & Locked
Additional Features:
  • Optical Port:Additional RS232 (D9) Connector for termination in the meter box
  • Disconnector Switch:
    • Make: HONGFA/KG/EVE
    • Two single-pole relays (90A) used in Phase & Neutral Circuit
  • Tamper Counters: Yes
  • Type Test Certified:IS 16444 Certified
  • Power Supply Backup:Super Cap, then Battery

The Mediant Three-Phase Smart Meter is a highly advanced metering solution designed to optimize energy efficiency, ensure accurate billing, and enhance security. Its real-time tracking, remote communication, and tamper-proof features make it a key component for smart grids, industrial applications, and AMI-based energy management systems.

Sub GHz RF Module Details
mediant

Brief Description of PCP Three-Phase Smart Meter

The PCP Three-Phase Smart Meter is a high-precision energy metering device designed for accurate monitoring, real-time data collection, and secure energy management. It is a 3-phase, 4-wire, direct-reading meter that ensures reliable performance with Class 1 accuracy as per IS 13779/IS 16444 standards. Equipped with tamper detection, net metering capabilities, and multiple communication protocols (RF, GPRS 4G, Bluetooth, Wi-Fi, RS-485, Optical Port), this smart meter is ideal for industrial, commercial, and smart grid applications.With its remote firmware update (FOTA) capabilities, advanced security features, and energy efficiency, the PCP Three-Phase Smart Meter enhances power distribution management while minimizing energy losses. It supports real-time monitoring, automated billing, and seamless integration with Advanced Metering Infrastructure (AMI), making it a smart solution for modern energy systems.

Specifications of PCP Three-Phase Smart Meter

Electrical & Performance Parameters:
  • Type: 3 Phase, 4 Wire, Whole Current Meter, Direct Reading Type
  • Accuracy Class: Class 1 as per IS 13779/IS 16444
  • Current Range: Ib 5A, Imax 100A
  • Operating Voltage:240V (+20%, -40%)
  • Operating Frequency:50Hz ± 5%
  • Power Consumption:
    • Voltage Circuit: 7W (under communication), 5W, 15VA
    • Current Circuit: 4VA
  • Short Time Overcurrent: 50 Imax for half cycle
  • Power Factor Range: Zero Lag to Unity
Mechanical & Environmental Features:
  • Degree of Protection: IP51 as per IS 12063
  • Resistance to Heat & Fire: As per IS 13779:99
  • Electromagnetic Compatibility (EMC): Yes, as per IS 13779:99
  • Tamper Detection:
    • Immune to stray magnetic fields, abnormal magnetic interference, and DC tampering
    • Logs tamper events with date & time stamps
    • Disconnects power supply under tamper conditions after a warning
Communication & Smart Features:
  • Communication Protocols: RF 865 – 867 MHz, GPRS 4G (fallback to 2G), Bluetooth, Wi-Fi, RS-485, Optical Port
  • Remote Firmware Updates (FOTA): DLMS compliant
  • Power Failure Alerts: Sends notifications during power failures
  • Self-Diagnostic Feature: Displays all segments on LCD at startup
  • Net Metering Support: Yes
Physical & Display Features:
  • Display Type:Backlit LCD (Green, Pin Type, STN, 120° Viewing Angle)
  • Pulse Rate: 1600 imp/kWh
  • Memory Retention:EEPROM, more than 20 years
  • Measuring Elements: Shunt in Phase, CT in Neutral
  • Startup Time:Fully functional within 5 seconds of power application
Safety & Security Features:
  • Withstand Voltage:
    • Impulse Voltage: 8kV, 100E impedancee
    • AC Withstand Voltage: 4kV (Body to Terminals)
  • Insulation Resistance:
    • Frame to Current/Voltage Circuits: > >5MΩ
    • Between Circuits: > >50MΩ
  • Sealing: Polycarbonate seals with serial number & logo
  • Fire Retardant Material:
    • Meter Body: PC (Polycarbonate), 2mm Thickness
    • Terminal Block: Integral part of the base body
  • Terminal Screws: M6, Nickel Plated Brass
  • Ultrasonic Welding for Base & Cover: Glued & Locked
Additional Features:
  • Optical Port:Additional RS232 (D9) Connector for termination in the meter box
  • Disconnector Switch:
    • Make: HONGFA/KG/EVE
    • Two single-pole relays (90A) used in Phase & Neutral Circuit
  • Tamper Counters: Yes
  • Type Test Certified:IS 16444 Certified
  • Power Supply Backup:Super Cap, then Battery

The Mediant Three-Phase Smart Meter is a highly advanced metering solution designed to optimize energy efficiency, ensure accurate billing, and enhance security. Its real-time tracking, remote communication, and tamper-proof features make it a key component for smart grids, industrial applications, and AMI-based energy management systems.

WiFi / BLE Module Details
mediant

Brief Description of PCP Three-Phase Smart Meter

The PCP Three-Phase Smart Meter is a high-precision energy metering device designed for accurate monitoring, real-time data collection, and secure energy management. It is a 3-phase, 4-wire, direct-reading meter that ensures reliable performance with Class 1 accuracy as per IS 13779/IS 16444 standards. Equipped with tamper detection, net metering capabilities, and multiple communication protocols (RF, GPRS 4G, Bluetooth, Wi-Fi, RS-485, Optical Port), this smart meter is ideal for industrial, commercial, and smart grid applications.With its remote firmware update (FOTA) capabilities, advanced security features, and energy efficiency, the PCP Three-Phase Smart Meter enhances power distribution management while minimizing energy losses. It supports real-time monitoring, automated billing, and seamless integration with Advanced Metering Infrastructure (AMI), making it a smart solution for modern energy systems.

Specifications of PCP Three-Phase Smart Meter

Electrical & Performance Parameters:
  • Type: 3 Phase, 4 Wire, Whole Current Meter, Direct Reading Type
  • Accuracy Class: Class 1 as per IS 13779/IS 16444
  • Current Range: Ib 5A, Imax 100A
  • Operating Voltage:240V (+20%, -40%)
  • Operating Frequency:50Hz ± 5%
  • Power Consumption:
    • Voltage Circuit: 7W (under communication), 5W, 15VA
    • Current Circuit: 4VA
  • Short Time Overcurrent: 50 Imax for half cycle
  • Power Factor Range: Zero Lag to Unity
Mechanical & Environmental Features:
  • Degree of Protection: IP51 as per IS 12063
  • Resistance to Heat & Fire: As per IS 13779:99
  • Electromagnetic Compatibility (EMC): Yes, as per IS 13779:99
  • Tamper Detection:
    • Immune to stray magnetic fields, abnormal magnetic interference, and DC tampering
    • Logs tamper events with date & time stamps
    • Disconnects power supply under tamper conditions after a warning
Communication & Smart Features:
  • Communication Protocols: RF 865 – 867 MHz, GPRS 4G (fallback to 2G), Bluetooth, Wi-Fi, RS-485, Optical Port
  • Remote Firmware Updates (FOTA): DLMS compliant
  • Power Failure Alerts: Sends notifications during power failures
  • Self-Diagnostic Feature: Displays all segments on LCD at startup
  • Net Metering Support: Yes
Physical & Display Features:
  • Display Type:Backlit LCD (Green, Pin Type, STN, 120° Viewing Angle)
  • Pulse Rate: 1600 imp/kWh
  • Memory Retention:EEPROM, more than 20 years
  • Measuring Elements: Shunt in Phase, CT in Neutral
  • Startup Time:Fully functional within 5 seconds of power application
Safety & Security Features:
  • Withstand Voltage:
    • Impulse Voltage: 8kV, 100E impedancee
    • AC Withstand Voltage: 4kV (Body to Terminals)
  • Insulation Resistance:
    • Frame to Current/Voltage Circuits: > >5MΩ
    • Between Circuits: > >50MΩ
  • Sealing: Polycarbonate seals with serial number & logo
  • Fire Retardant Material:
    • Meter Body: PC (Polycarbonate), 2mm Thickness
    • Terminal Block: Integral part of the base body
  • Terminal Screws: M6, Nickel Plated Brass
  • Ultrasonic Welding for Base & Cover: Glued & Locked
Additional Features:
  • Optical Port:Additional RS232 (D9) Connector for termination in the meter box
  • Disconnector Switch:
    • Make: HONGFA/KG/EVE
    • Two single-pole relays (90A) used in Phase & Neutral Circuit
  • Tamper Counters: Yes
  • Type Test Certified:IS 16444 Certified
  • Power Supply Backup:Super Cap, then Battery

The Mediant Three-Phase Smart Meter is a highly advanced metering solution designed to optimize energy efficiency, ensure accurate billing, and enhance security. Its real-time tracking, remote communication, and tamper-proof features make it a key component for smart grids, industrial applications, and AMI-based energy management systems.

More Products

Neque porro quisquam est, qui dolorem ipsum quia dolor sit amet, consectetur,
adipisci velit, sed quia non numquam.

mediant
02.

Smart Meters

A smart energy meter is an electronic device designed to provide precise measurements of electricity consumption for homes, businesses, or any electrical device. It offers highly accurate data on energy usage, significantly reducing the likelihood of errors in traditional billing systems

View Detail
mediant
03.

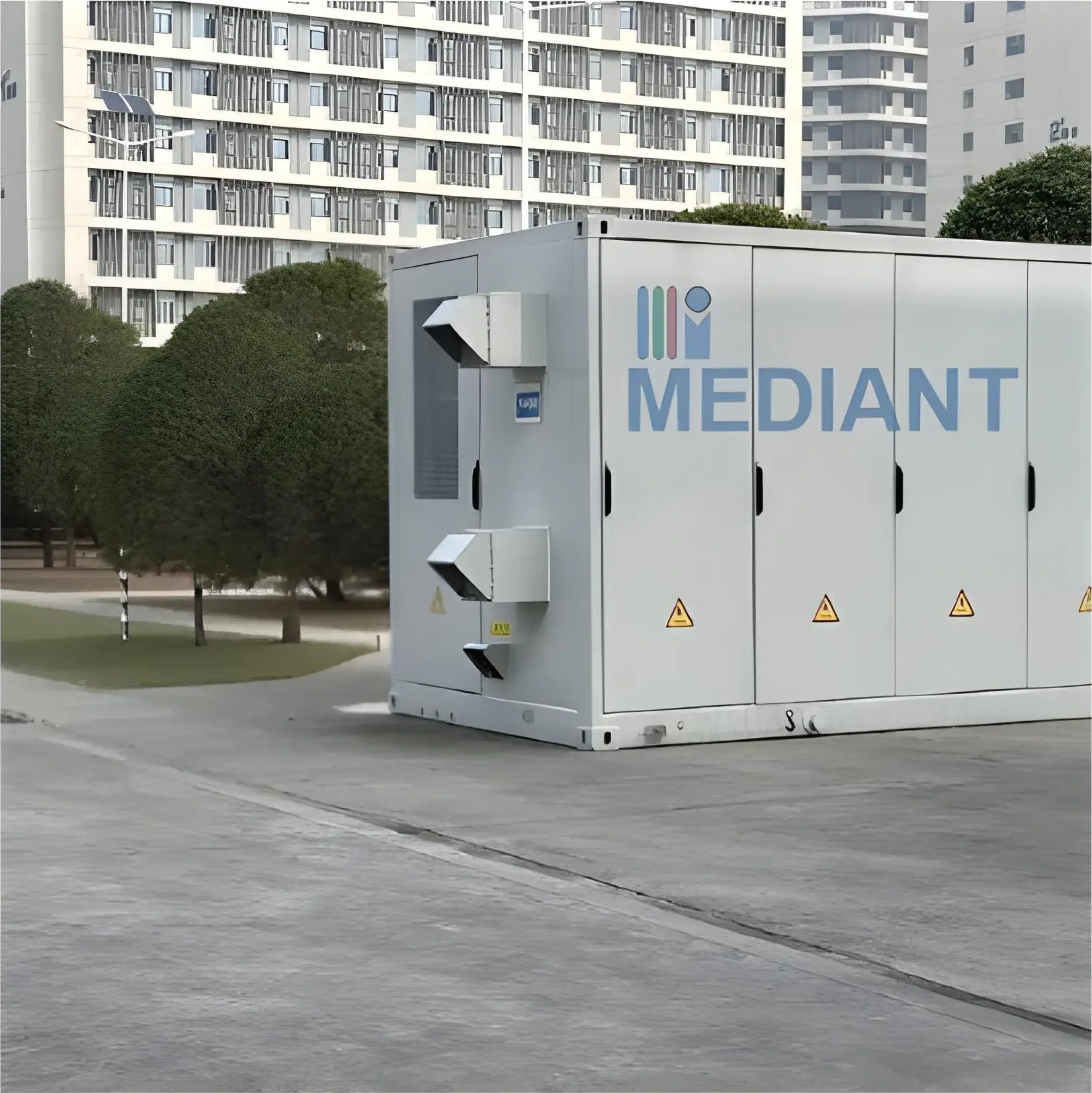

Battery Storage Systems

Mediant Energy's advanced DC-coupled batteries efficiently store excess solar power, providing reliable energy for your home during the night, cloudy days, or power outages. This helps reduce electricity costs and ensures uninterrupted power.

  • 15 kWh Battery Energy Storage System
  • 5 kWh Battery Energy Storage System
  • Battery Management Systems
  • Battery Energy Storage Management Application
View Detail
mediant
mediant

Have Questions? Call Us +91 - 8800599854

Got a question or need support? Our team is just a call away. Reach out now—we're here to assist you with anything you need.

mediant

Our Certifications & Compliance

Ensuring compliance and trust with industry-standard certifications for safety, accuracy, and reliability.

View All Certifications
GENERATE YOUR OWN POWER REAP THE RETURNS HEAL THE WORLD
